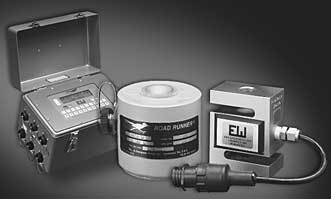

THE ROAD RUNNER JACK POINT The Road Runner Jack Point Weigher Systems are ideal for weighing light aircraft or helicopter after retrofitting new equipment. The easy to use Full Function indicator provides both individual wheel weight and total aircraft weight. Color coded cables and indicator connectors make it quick and easy to set-up the system and eliminate errors. This system provides easy operation and accurate weighments.

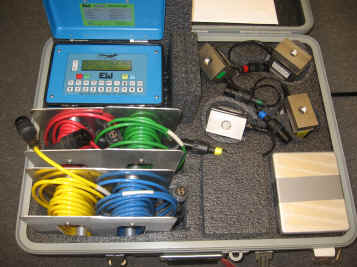

Road Runner Jack Point Weighing Systems Features 15,000 to 400,000 lbs. capacity Accuracy of 0.1% of applied load or ± 0.2% of channel capacity, whichever is greater 1 to 4 Channels of input for weighments Operates on 10 to 32 Volts DC or 115 / 230 Volts AC RS-232 for PC Data Storage Stainless Steel Load Cells Operating temperature range + 14°F to 120°F Roll-around storage and transportation case



Road Runner™ Aircraft Weighing Systems (Jack Point)
Model No.	System Part No.	System Capacity (lbs.)	Qty. of Cells	Cell Capacity (lbs.)	System Wt. (lbs.)	Price
JP5000-3	9101635-01	15,000	3	5,000	55	Call for pricing
JP5000-4	9101640-01	20,000	4	5,000	59	Call for pricing
JP15000-3	9101605-01	45,000	3	15,000	67	Call for pricing
JP15000-4	9102150-01	60,000	4	15,000	72	Call for pricing
JP50000-3	9101610-01	150,000	3	50,000	72	Call for pricing
JP50000-4	9102000-01	200,000	4	50,000	77	Call for pricing
JP100000-3	9102020-01	300,000	3	100,000	85	Call for pricing
JP100000-4	9102140-01	400,000	4	100,000	95	Call for pricing

Click here for close up photos
