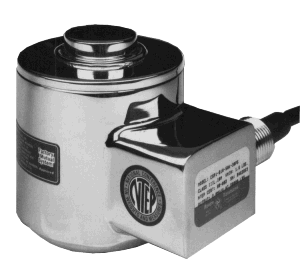

CP-CSP Load Cell

Features:

bulletCapacities from 10K to 500K lbs
bulletStainless load button and base, standard
bulletMulticolumn construction
bulletOptional dual bridge
bulletOperational from -65°F to +200°F
bulletFactory Mutual approved for Intrinsic safety
bulletCSP NTEP Certificate 88-082, IIIL, 10,000 div.
bulletExceeds NEMA 6 and IP67 hose down



Model CP

1.75  mv/v, 0.15% nonlinearity, 450/480 ohm, 30 ft 4 cond cable, stainless steel

Part Number

Capacity

Weight

Price

CP1-D1-10K-30S5

10,000 lb

6 lb

$1,312

CP1-D1-25K-30S5 25,000 lb 6 lb

$1,312

CP1-D1-50K-30S5 50,000 lb 6 lb

$1,312

CP1-D1-100K-30S5 100,000 lb 14 lb $1,465
CP1-D1-200K-30S5 200,000 lb 38 lb $2,095
CP1-D1-300K-30S5 300,000 lb 38 lb $2,305
CP1-D1-500K-30S5 500,000 lb 53 lb $4,478
Model CSP
2mv/v, 0.05% nonlinearity, 450/480 ohm, 30 ft 4 cond cable, stainless steel
NTEP 88-082 S/M IIIL 10,000 div. (B10)
Part Number Capacity Weight Price
CSP1-D3-10K-30S5 10,000 lb 6 lb

$1,312

CSP1-B10-25K-30S5 25,000 lb 6 lb

$1,312

CSP1-B10-50K-30S5 50,000 lb 6 lb

$1,312

CSP1-B10-100K-30S5 100,000 lb 14 lb $1,465
CSP1-B10-200K-30S5 200,000 lb 38 lb $2,095
CSP1-D3-300K-30S5 300,000 lb 38 lb $2,305
CSP1-D3-500K-30S5 500,000 lb 53 lb $4,478
