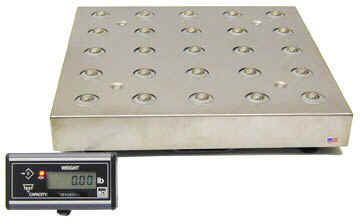

NCI 7885
(shown with optional ball transfer top)

Part Number Capacity Platform Price
NCI 7885-150 150 lb x 0.05 18" x 18" $600
NCI 7885-150 with ball transfer top 150 lb x 0.05  18" x 18" $775



Features & Benefits:
Remote Display Six-digit LCD display housed in an extruded enclosure with a 7 foot cable, connected via RJ 45 connector on the rear of the scale.

Display Controls ZERO:
Includes Auto Zero Tracking or Manual push button to re-establish zero reference. TEST: Runs a diagnostic test to ensure scales is fully functional, and allows a real-time view of internal settings. Construction Stainless steel weight platter, powder painted 7 gauge steel weigh bridge and base plate. Field Calibration Alternate span points can simplify field calibration by using less than full capacity weights. Can be set-up as either decimal pound or kilogram.

RS-232 cable Included with each scale, DB 9-pin, null modem, female connector allows you to connect to a PC. Emulation Protocols Standard NCI default with field configurable settings of 8213, 3835, SMA, and Auto Weight Send. This allows you to select compatible scale communication settings or scale drivers during field installation when interfacing with shipping software programs or host devices.

Specifications
Capacity (lb)    Capacity (kg)
100 x 0.02 lb*    50 x 0.01 kg*
150 x 0.05 lb     60 x 0.02 kg**

Note: Default configuration as postal weight classifier.
* Custom Configuration
**Metric weighing can be configured in the field during calibration.

Internal Resolution: 1 part in 120,000.
Dimensions: 18.0" x 18.0" x 3.0" (457mm x 457mm x 76mm). Power:120 VAC (+10% -15%), 60 Hz, standard 3-wire ground.

Operating Environment:
Temperature: 42° F to 104° F (5° C to 40° C)
Relative Humidity: 10 to 95% (non-condensing).
Agency Approvals:
United States: NTEP approved for use in Class III operations
Canada: Canada Weights and Measures approval pending.
Input/Output: RS-232, bi-directional, configurable 1200 - 19.2K baud. Transmits weight and scale status whenever ASCII “W” is sent by a remote device.
Shipping Weight: 47 lbs/22 kg, standard configuration.

Click here to order on-line
