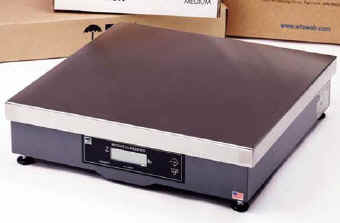

NCI 7880 shipping scale

Part Number Capacity Platform Price
NCI 7880 250 lb 18" x 18" $950
NCI 7880 with
ball transfer top		 250 lb 18" x 18" $1,150

Features and Benefits

bulletAccurate and reliable
bulletDuraBridge™ technology
Reduces overall scale deflection to less than 1/2 when a full load is applied.
bulletFast digital response
Speeds weight processing time.
bulletLarge 18 x 18 weight platter
Easily accommodates oversize parcels and containers.
bulletRS-232 bi-directional output
Allows for connection to a computer or smart terminal.
Uses standard PC cable to 9-pin "D" connector on scale.
bulletHigh resolution mode
"H" command accesses increased resolution.
bulletCalibration
Alternate span points can simplify field calibration using less than full
capacity weights.
bulletOverload protection
Overload stops located in base of scale.
Helps to protect load cell and extend the scale's life.
bulletSimple to use
Reduces operator training time.
bulletInternal display
Front mounted 1/2 H, 6 digit LCD.
bulletRS-232 cable
Allows you to connect to a PC.
bulletScale or Weight Classifier configurations are internally configurable.

Options

bulletBall-top weight platter-
Simplifies transport of all parcels and ideal for conveyer lines.
bulletRemote display-
6 digit LCD housed with a 7- foot cable.

Specifications

Dimensions
18( L) x 18( W) x 5.3( H)

Construction
Stainless steel weight platter and a painted die cast aluminum base

Controls
Zero - With Auto zero tracking for zeroing the scale Test- Runs a diagnostic program to assure the scale is fully functional

Weight
45 lbs or less when prepared for shipping

Power
120 VAC +10% - 15%, 60Hz, standard 3 wire ground
230 or 240 VAC + 10% - 15%, 50Hz optional

Agencies
NTEP approved for NIST Handbook 44
Class III commercial applications (COC # 95-070A5)
Canadian Weights and Measures (# AM-5076)
CSA/CAN C22.2 M950

Operating environment
42  to 104 F (5C to 40C), Class III device
Humidity 10% to 95% RH, non-condensing

Input/Output
RS-232, bi-directional, configurable 1200 - 19.2K Baud.
